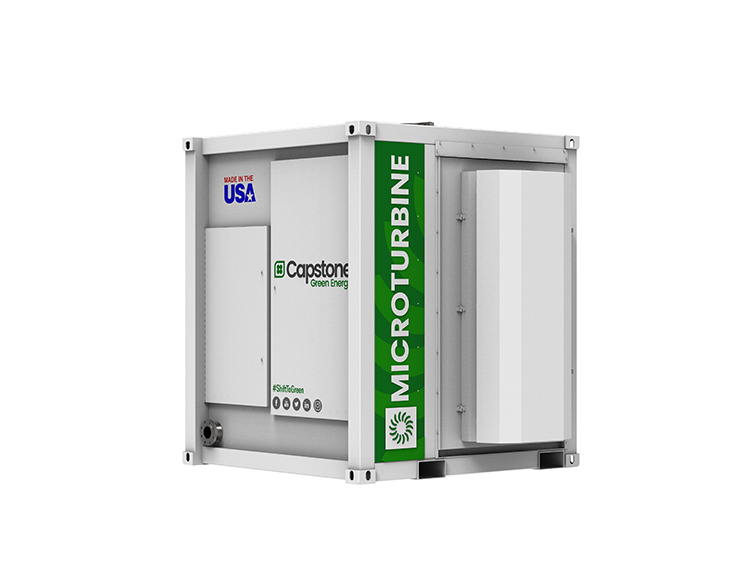

C200S

C200S

Expandable

Can be paralleled up to multiple megawatts of power

Specifications

Rating:

200 kW

Electrical Efficiency LHV:

33%

Combined Heat And Power Efficiency:

Up to 90%

Voltage:

400-480 VAC

Frequency:

50/60 Hz, Grid Connect
10-60 Hz, Stand Alone

Electrical Service:

3-Phase, 4-Wire Wye

Width:

3.0 m (117 in)

Depth:

5.8 m (230 in)

Height:

3.03 m (119 in)

Weight:

Grid Connect – 13,300 kg (29,300 lbs); Dual Mode – 15,400 kg (33,900 lbs)

Net Heat Rate LHV:

10.9 MJ/kWh (10,300 BTU/kWh)

Exhaust Temperature:

280 ºC (535ºF)

Exhaust Gas Flow:

4.0 kg/s (8.8 lbm/s)

Compatible Fuels:

Pipeline Natural Gas, Biogas (Landfill, Digester), LPG, Raw Natural Gas (Sour, Associated Gas)

Notes

  1. Nominal full power performance at ISO conditions: 59˚F, 14.696 psia, 60% RH
  2. Height dimensions are to the roofline. Exhaust outlet can extend up to 5 inches above the roofline.
  3. Nominal full power performance at ISO conditions: 15˚C (59˚F), 14.696 psia, 60% RH
  4. Specifications based on high pressure natural gas systems. Values may vary with other fuel types.


Specifications are not warranted and are subject to change without notice.
