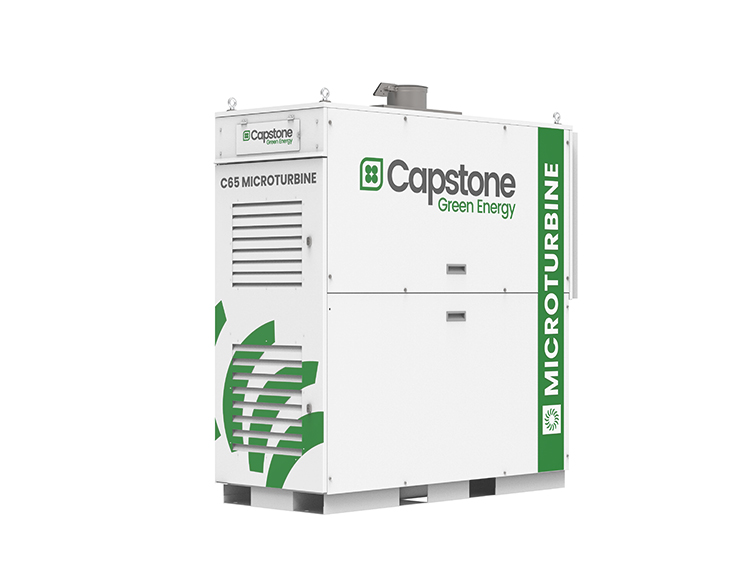

C65
Expandable
Can be paralleled up to multiple megawatts of power
Specifications
Rating:
65 kW
Electrical Efficiency LHV:
29%
Combined Heat And Power Efficiency::
Up to 90%
Voltage:
400-480 VAC
Frequency:
50/60 Hz
Electrical Service:
3-Phase, 4-Wire Wye
Width:
2.4384 m (96 in)
Depth:
3.6576 m (144 in)
Height:
2.4384 m (90 in)
Net Heat Rate LHV:
12.4 MJ/kWh (11,800 BTU/kWh)
Exhaust Temperature:
309ºC (588ºF)
Exhaust Gas Flow:
0.49 kg/s (1.08 lbm/s)
Compatible Fuels:
Natural Gas, Liquid Fuels (Kerosene, Aviation Fuels), Biogas (Landfill, Digester), Associated Gas, Sour Gas, Propane Gas
Notes
- Nominal full power performance at ISO conditions: 59˚F, 14.696 psia, 60% RH
- Height dimensions are to the roofline. Exhaust outlet can extend up to 7 inches above the roofline.
- Specifications based on high pressure natural gas systems. Values may vary with other fuel types.
Specifications are not warranted and are subject to change without notice.
